Factory Lead Time

9 Weeks

Mount

Through Hole

Mounting Type

Through Hole

Package / Case

7-SIP Module, 4 Leads

Number of Pins

4

Weight

2.4g

Operating Temperature

-40°C~85°C

Packaging

Tube

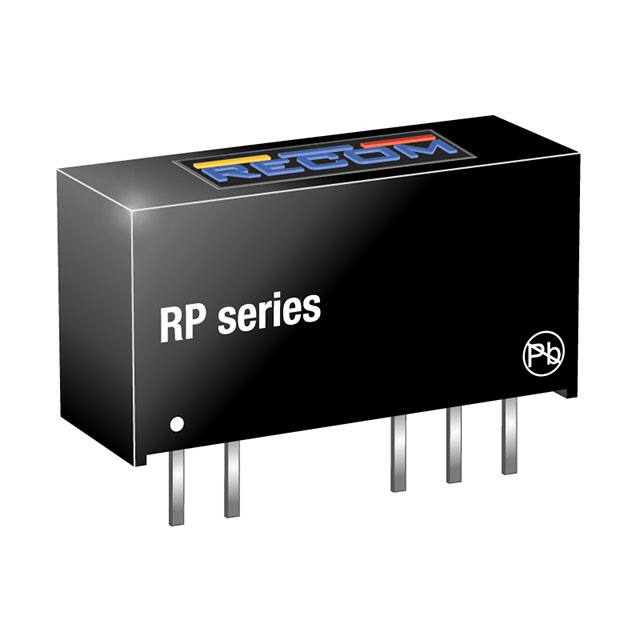

Series

ECONOLINE RP (1W)

Size / Dimension

0.77Lx0.28W x 0.40 H 19.7mmx7.1mmx10.2mm

Pbfree Code

yes

Part Status

Active

Moisture Sensitivity Level (MSL)

1 (Unlimited)

Number of Terminations

4

ECCN Code

EAR99

Type

Isolated Module

Applications

ITE (Commercial), Medical

Max Power Dissipation

1W

Terminal Position

SINGLE

Terminal Form

PIN/PEG

Peak Reflow Temperature (Cel)

NOT SPECIFIED

Number of Functions

1

Depth

7.05mm

Time@Peak Reflow Temperature-Max (s)

NOT SPECIFIED

Pin Count

7/4

Number of Outputs

1

Qualification Status

Not Qualified

Efficiency

78%

Voltage - Isolation

5.2kV

Voltage - Input (Max)

13.2V

Output Voltage

12V

Max Output Current

84mA

Voltage - Input (Min)

10.8V

Input Voltage-Nom

12V

Trim/Adjustable Output

NO

Output Current

84mA

Output Power

1W

Max Output Voltage

12V

Total Power Output-Max

1W

Nominal Input Voltage

12V

Isolation

Isolated

Features

SCP

Height

10.2mm

RoHS Status

ROHS3 Compliant

Lead Free

Lead Free
